George Knight









DC16APT

TWIN Automatic Digital Combo 14x16 Swing-Away Press

Price: $4450

Availability: 2 Weeks

Add to Cart

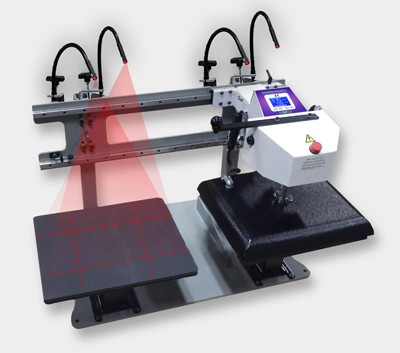

The Digital Combo DC16APT is an air-operated, Twin-Station, Automatic 14x16 heat press with optional interchangeable heat platens and tables. The smooth automatic pressing and pushbutton activation provides a productive, fatigue-free operation... in a DUAL-STATION High Production layout! With just a few fingers the top head effortlessly glides side-to-side, increasing throughput and operation productivity.

For all the same features and possibilities as the automatic DC16AP, with twin-station high-production layout, the DC16APT is the ideal high-volume pressing solution.

Note: This press is available with the 6"x8" label heat platen and bottom tables as well - the DC8APT. For a dedicated automatic twin-station cap press - the DC7APT.

Features

  • Automatic air operated pressing
  • Threadable, dual interchangeable bottom tables
  • 14" left-to-right x 16"-deep orientation (opposite DC16AP)
  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Air regulator and gauge 20-100 PSI range (compressor req)
  • Total applied force of 800 lbs max
  • Interchangeable Heat Platens & Tables
  • Solid steel welded framework
  • SuperCoil-Microwinding™ heater technology
  • Accommodates materials up to 2" thick
  • Temperature readout accuracy +-2°F - can show °C or °F
  • 70 Programmable presets
  • Records number of pressing cycles done
  • Teflon-coated 3/4" thick heat platen

Warranty

  • FREE LIFETIME Tech Support!
  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts

Specs

  • Air Compressor Required (min): 5gal, ½cfm, 100psi, 1/4" line
  • Weight: 350 Lbs
  • Electrical: 1500W / 12A / 120V
  • Shipping Dims: 42"L x 32"W x 36"H
  • (add $35 for 220V international)

SUGGESTED ACCESSORIES:



DKA-STANDTW

DK20SPT & DC16APT Twin Auto Stand with Casters

DCP-Cap

DC-Air Cap Attachment

DC-Mug

Full-Wrap Mug Attachment (for Digital Combo press)

DC-Plate

Plate Attachment

DCA-1416BHT

Digital Combo 14 x 16 Bottom Heat Fixture

DKA-68BHT

6 x 8 Label Bottom Heat Fixture

DCA-35BHT

Cap Bottom Heat Attachment (for Digital Combo)

DKA-STAND

DK Universal Stand

CTW-1416

14x16 Teflon Bottom Table Wrap w/ elastic corners

CHW-1416

14x16 Teflon Top Heater Wrap w/ elastic corners

TRM-SM1416

14x16 Teflon Sheet

DCA-1214TBL

Digital Combo 12" x14" Drop On Table

DCA-1012TBL

Digital Combo 10" x12" Drop On Table

DCA-SLV3

DC 3.5" Sleeve Table

DCA-SLV5

DC 5" Sleeve Table

DCA-CAPBILL

4-UP CAP BILL DC COMBO STYLE

DCA-KOOZIE

DC KOOZIE TABLE FOR DIGITAL COMBO

DCA-SHOE

Digital Combo Shoe Drop-On Table

DKA-68TBL

DK8 / DC 6" x 8" Drop-On Table

DKA-35TBL

DK8 / DC 3" x 5" Drop-On Table

DKA-33TBL

DK8 / DC 3" x 3" Drop-On Table

Automatic Machines:



DC8AP Heat Press

DC8AP

The DC8AP label press is a 6"x8" small platen heat press.

DK20SP Heat Press

DC16AP

The DC16AP is an automatic 14"x16" swing-away heat press with interchangeable heat platens and tables.

DC16APT Heat Press

DC16APT

The DC16APT is DUAL table twin-automatic 14"x16" swing-away heat press with interchangeable heat platens and tables.

DK20SP Heat Press

DK20SP

The DK20SP is an automatic 16"x20" air-operated swing-away heat transfer press.

DK20SPT Heat Press

DK20SPT

The DK20SPT is the SAME as the DK20SP, but with TWIN sliding bottom tables for Max-productivity and minimum heater/operator idle time.

DK20SP Heat Press

DK25SP

The Digital Knight DK25SP is an air-operated, automatic 20"x25" swing-away heat press.

DK32AP

DK32AP

The Digital Knight DK32AP is an air-operated automatic 26"x32" heat transfer press.

394-TS/MTS Press

394-TS/MTS

The 394 Shuttle Press is a high production, twin station heat transfer press.
